Tippers and Dropsides for commercial vehicles from 3.5t to 7.5t

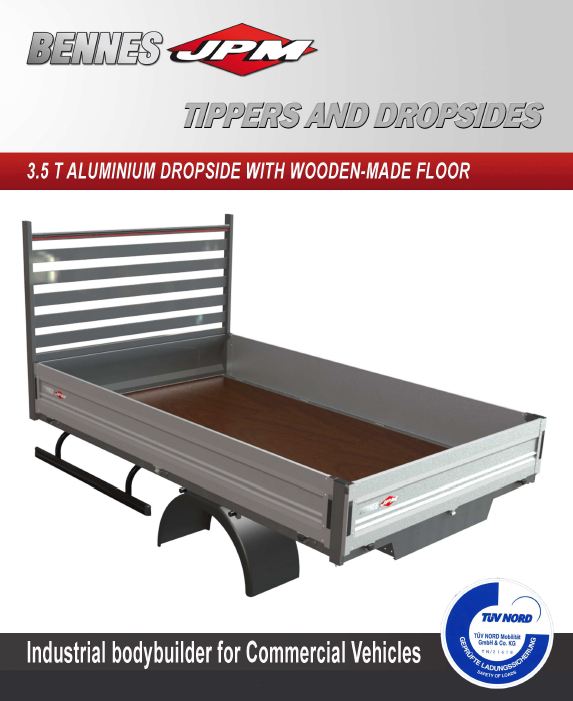

Aluminium dropside with wood platform and anodized sideboards

BODY

- Aluminium side members, 4 mm thick

-Aluminium structure, 3 mm thick

- Aluminium cross members under platform, 60 mm thick

- Multilayer wood platform, 15 mm thick, threated with phenolic resin, water-resistant, anti-skid surface

- Outer frame adapted to strap tension belts

- Lashing points integrated in platform, retractable, hot-dip galvanized steel

- Removable rear corner pillars in aluminium, with connecting system

- Aluminium bulkhead, welded, 450 mm high

- Aluminium plank gantry, removable

- Anodized aluminium sideboards and rear door, 25 mm thick, 400 mm high, fold-down,

- Locking-grips integrated in sideboards

- Rubber buffer stops on sideboard and rear door hinges, shock-absorbins

- Polypropylene mudguards, black, including cataphoretic dip-coating mudguard brackets

- Side underrun protection in aluminium, black coated, certified according to safety standards

- Geomet treated bolts (5 times more resistant than galvanizing

FINISH

- Coated kit has a total coating thickness of 120µm

- Shot-blasting

- Polyester top coat applied separately on each component

- Untreated kit

WEIGHT OF KIT

4.000 mm : 255 kg

4.600 mm : 285 kg

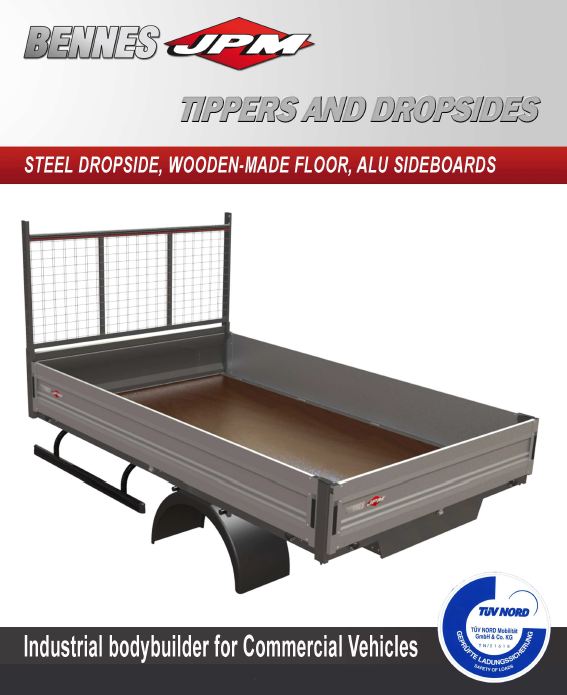

Steel dropside with wood platform and anodized sideboards

 BODY

- Side members in steel S355, 3 mm thick

- Structure in steel S250D, 2 mm thick, galvanized

- Steel cross members under platform, 60 mm thick, galvanized

- Multilayer wood platform, 15 mm thick, threated with phenolic resin, water-resistant, anti-skid surface

- Lashing point integrated in platform, retractable, hot-dip galvanized steel

- Removable and self-adjusting corner pillars, with connecting system and hot-dip galvanized

- Outer frame adapted to strap tension belts

- Steel bulkhead S355, welded, 2 mm thick, 450 mm high

- Steel wire mesh gantry, 4 mm, removable and hot-dip galvanized

- Anodized aluminium sideboards and rear door, 25 mm thick, 400 mm high, fold-down, removable and interchangeable

- Locking-grips integrated in sideboards

- Rubber buffer stops on sideboards and rear door hinges, shock-absorbing

- Polypropylene mudguards, black, including cataphoretic dip-coating, black coated, certified according to safety standards

- Geomet treated bolts (5times more resistant than galvanizing)

FINISH

- Total coating thickness 120µm / 1.200 h salt spray

- Shot-blasting

- Anticorrosive coating + polyester top coat applied separately on each component

- Seals between non seam-welded components

WEIGHT

4.000 mm : 425 kg

4.600 mm : 479 kg
